High-voltage power distribution and protection

Breaktor circuit protection for electric vehicles

Breaktor is a resettable, high-voltage (HV) circuit protection device that integrates switching, circuit protection, and fault detection into a single unit. It is designed for battery electric vehicle OEMs, Tier 1 suppliers, and high-voltage (HV) system designers developing advanced EV architectures.

As battery electric vehicle systems move to higher voltages, higher currents, and faster DC fast charging, circuit protection must address a wider range of operating conditions. Circuit protection systems must support normal driving, DC fast charging, overloads, short circuits, and crash events while helping maintain vehicle and occupant safety.


Pacepilot 2022 Innovation to Watch



What protection challenges does Breaktor address in high-voltage (HV) EV systems?

  • Reduces coordination complexity between contactors, fuses, and pyro fuses
  • Improves fault response time under high fault currents
  • Simplifies circuit protection design for high-voltage (HV) EV systems and DC fast charging architectures
  • Reduces dependency on multiple devices with different response times
  • Supports consistent protection performance across operating conditions

Integrated circuit protection for high-voltage (HV) EV systems

Conventional EV circuit protection architectures rely on multiple components. This includes contactors, fuses, and pyro fuses, coordinated through the battery management system. As high-voltage (HV) system power levels increase, these architectures become more complex to manage.

Because protection functions are distributed across devices with different response times, fault handling often requires coordination between the contactor, fuse, and pyro fuse. This can introduce:

  • Complex system integration
  • Tight timing dependencies
  • Increased risk of miscoordination under high fault currents

In high-voltage (HV) battery electric vehicles, these challenges can impact response time, system coordination, and overall circuit protection design.

Conventional EV circuit protection architectures vs Breaktor

Conventional systems Breaktor
Multiple components  Single integrated device
Coordinated response required Autonomous circuit protection response
Non-resettable Resettable

How Breaktor simplifies circuit protection design

Breaktor combines switching, circuit protection, and fault detection into a single device. This reduces component count, simplifies system integration, and supports faster, more predictable fault response in high-voltage (HV) EV systems.

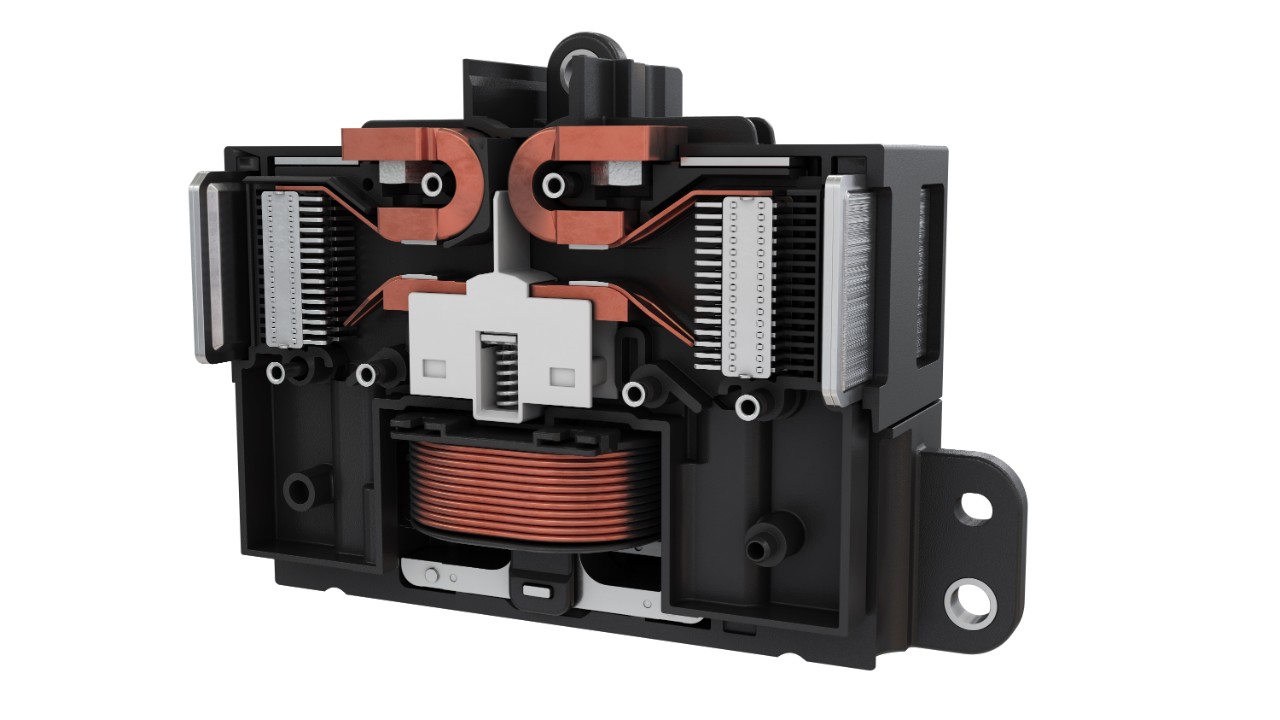

Key capabilities and outcomes

  • Permanent magnet system: Helps control location of arcing
  • Splitter plates: Split the arcing into smaller, lower voltage arcs to help with extinguishing
  • Current sensor: Senses unsafe overcurrent conditions and communicates to on-board PCBA
  • Driver electronics: Powers Breaktor® actuation and deenergizes coil during overcurrent event
  • Driver coil: Actuates Breaktor® with low voltage current

Why Breaktor matters for EV system design

Breaktor supports the transition to higher-voltage EV architectures by simplifying protection strategies and reducing system complexity. By integrating multiple protection functions into a single device, it enables more scalable and repeatable system designs for battery electric vehicles.
E_Breaktor_infographic_updated_0424_032724_1013am_Font_Change

    Specifications

    General Specifications

    Max. operating voltage 900V max. 2000m ASL / max. 4500m ASL
    Contact configuration 1 NO or 2 NO
    Rated current (continuous load, thermal) 350- 750A* based on generic load profile, bidirectional
    Max. switch on current Approx. 1,7kA(+/-20%) current sensor threshold, adjustable
    Max. overload switch off current 35kA
    Overload switch off time

    up to 4kA < 7ms

    4 – 10kA < 6ms

    10 – 25kA < 4ms

    includes sensing, triggering, and arcing time; load and time constant depending
    Functional safety ASIL-D
    *When cooling system is leveraged. All specified values are dependent on system parameters and subject to change. Other models and configurations are available; consult Eaton for details.
